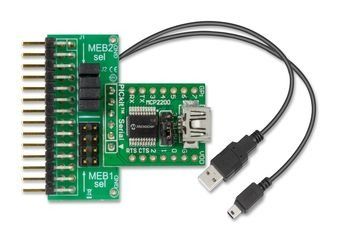

MEB/MEB II UART-to-USB Adapter Board

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in applications that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256 bytes of integrated user EEPROM. The MCP2200 has eight general purpose input/output pins. Four pins have alternate functions to indicate USB and communication status.

• Features
• Universal Serial Bus (USB)
• Supports full-speed USB (12 Mb/s)
• Implements USB protocol composite device:
  • Communication Device Class (CDC) for communications and configuration
  • Human Interface Device (HID) for I/O control
• 128-byte buffer to handle data throughput at any UART baud rate:
  • 64-byte transmit
  • 64-byte receive
• Fully configurable VID and PID assignments, and string descriptors
• Bus powered or self-powered
• USB 2.0 Compliant: TID 40001150
• USB Driver and Software Support
• Uses standard Windows® drivers for Virtual Com Port (VCP): Windows XP (SP2 or later), Vista, 7
• Configuration utility for initial configuration
• Universal Asynchronous Receiver/Transmitter (UART)
• Responds to SET LINE CODING commands to dynamically change baud rates
• Supports baud rates: 300-1000k
• Hardware flow control
• UART signal polarity option
• General Purpose Input/Output (GPIO) Pins
• Eight general purpose I/O pins
• EEPROM
• 256 bytes of user EEPROM
• Other
• USB activity LED outputs (TxLED and RxLED)
• SSPND output pin
• USBCFG output pin (indicates when the enumeration is completed)
• Operating voltage: 3.0-5.5V
• Oscillator input: 12 MHz
• ESD protection: > 4 kV HBM
• Industrial (I) Operating Temperature: -40°C to +85°C
• Package Types The device will be offered in the following packages:
• 20-lead QFN (5 x 5 mm)
• 20-lead SOIC
• 20-lead SSOP
