MC68HC908JW32 8-bit Microcontroller Evaluation Kit

The EVALUATION KIT is a working hardware/software example that allows a user to become familiar with the MC68HC908JW32 microcontroller by means of an actual useful application, a USB to SPI and USB to parallel converter. The main function provided by this kit is to allow a PC, that may not have a parallel port, to communicate with other Freescale Evaluation Kits, via a USB port. The USB port is a standard feature on almost every new PC. This kit makes use of the MC68HC908JW32’s built-in USB, SPI and parallel ports.

USB to SPI converter

USB to parallel converter

Reprogramming capability for the MC68HC908JW32, through the USB port, using SPIGen v7.0 or later (see New Software link in right column of this page) or through the on-board MON08 connector port.

Uses Freescale"s PC based SPIGen software

MC68HC908JW32 MCU is available with a variety of memory sizes and types, modules and package types

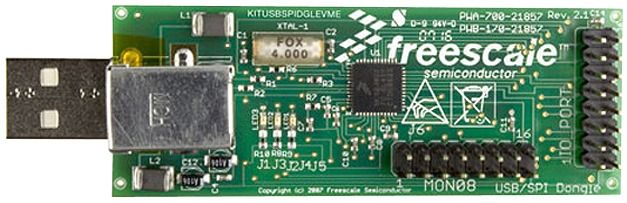

PCB contains a USB type A connector (male) and a USB type B connector (female)
