MC33882 Smart Six Output Switch Evaluation Kit

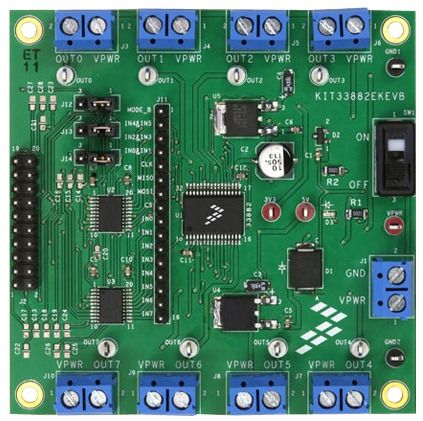

The KIT33882EKEVB evaluation board allows the user to exercise all the functions of the MC33882 smart six-output low-side switch (0.3 Ohm RDS(on)) with SPI and Parallel Input Control. There are two ways to communicate with the evaluation board: A PC communicates with the evaluation board through a FRDM SPI Dongle (FSD) The microcontroller on the FRDM-KL25Z communicates with the evaluation board via microcontroller code.

Freescale SPI Generator (SPIGen) provides the user interface to the MC33882 SPI port

• Send commands to the IC
• Receive status information from the IC

Output terminals for loads

Test points for inputs, outputs, and SPI signals

FSD connector
