MAXQ USB-to-JTAG/1-Wire Adapter Evaluation Kit

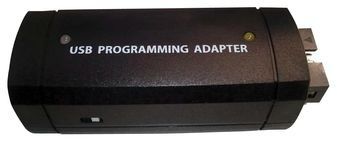

The MAXQ USB-to-JTAG/1-Wire adapter is a convenient way to interface either the JTAG or 1-Wire port on MAXQ microcontrollers to a PC. The EV kit can be used with compatible software tools running on a host PC to load and debug code on programmable MAXQ microcontrollers. The EV kit contains the MAXQ USB-to-JTAG/1-Wire adapter, an interface cable, and a USB Mini-B cable.

• Easily Load and Debug Code
• Interface Provides In-Application Debugging Features
  • Step-by-Step Execution Tracing
  • Breakpointing by Code Address, Data Memory Address, or Register Access
  • Data Memory View and Edit

Supports Logic Levels from 1.1V to 3.6V

Supports JTAG and 1-Wire Protocols

Each Adapter Has Its Own Unique Serial ID, Allowing Multiple Adapters to be Connected Without COM Port Conflicts

Has In-Field Upgradable Capability if Firmware Needs to be Upgraded

Enclosure Protects from Shorts and ESD
