MAX9928 -0.1V to +28V Input Range Micropower Uni-/Bidirectional Current-Sense Amplifier Evaluation Kit

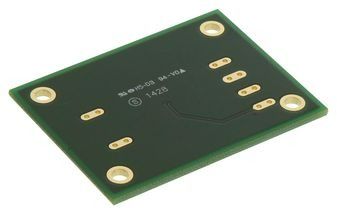

The MAX9928 evaluation kit (EV kit) provides a proven design to evaluate the MAX9928 uni-/bidirectional, highside, current-sense amplifier, which offers precision accuracy specifications of VOS < 400µV and gain error < 1.0%. This EV kit demonstrates the MAX9928 in an ultrasmall, 1mm x 1.5mm x 0.6mm, 6-bump UCSP package. The MAX9928 is also available in an 8-pin µMAX , but that package is not compatible with this EV kit. The MAX9928 EV kit PCB comes with a MAX9928FABT+ installed, which is the 5µA/mV gain version. The MAX9928 EV kit can also be used to evaluate the MAX9928T, MAX9929F, and MAX9929T (2µA/mV, 50V/V, and 20V/V, respectively). This EV kit can also evaluate the MAX4372 in a footprint-compatible UCSP package. Contact the factory for free samples of the pin-compatible MAX9928TABT+, MAX9929FABT+, or MAX9929TABT+ devices.

• Precision Real-Time Current Monitoring
• -0.1V to +28V Input Common-Mode Range
• Evaluates MAX9928, MAX9929, and MAX4372
• VOS < 0.4mV; Gain Error < 1%
• SIGN Bit to Show Charge/Discharge Current Flow
• Lead(Pb)-Free and RoHS Compliant
• Proven PCB Layout
• Fully Assembled and Tested
