MAX5825 8/10/12-Bit Buffered Output DAC Peripheral Module

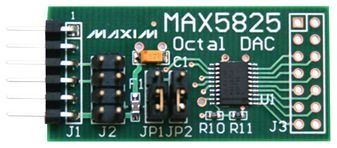

The MAX5825PMB1 peripheral module provides the necessary hardware to interface the MAX5825 8-channel DAC to any system that utilizes Pmod-compatible expansion ports configurable for I²C communication. The IC features eight independent 12-bit accurate internally buffered voltage-output DAC channels. The IC also features an internal reference that is selectable between 2.048V, 2.500V, and 4.096V (4.096V reference operation is not supported with a standard 3.3V Pmod-port power supply).

• Eight High-Accuracy DAC Channels
• 12-Bit Accuracy without Adjustment
• Precision Voltage Reference Internal to the IC
• Provision for Optional External Reference Input
• Jumper-Selectable I²C Address Setting
• 6-Pin Pmod-Compatible Connector (I²C)
• Secondary Header Allows Daisy-Chaining of Additional Modules on the I²C Bus
• Example Software Written in C for Portability
• RoHS Compliant
• Proven PCB Layout
• Fully Assembled and Tested
