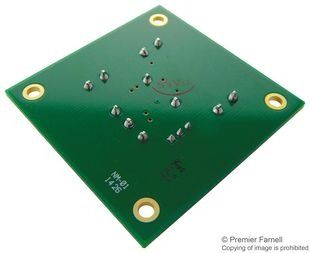

MAX44284 36V Input Common-Mode High-Precision Low-Power Current-Sense Amplifier Evaluation Kit

The MAX44284 is a high-side, current-sense amplifier that operates with a 1.7V to 5.5V single supply and is optimized for very low power operation with only 21µA of quiescent current. The MAX44284 offers precision accuracy specifications of 2µV VOS and gain error of 0.05%. The device features an input common-mode voltage range from -0.1V to +36V. This current-sense amplifier has a voltage output and is offered in four different gain versions. The MAX44284 is offered in small 6-bump, 0.4mm-pitch WLP (1.3mm x 0.9mm) and 6-pin SOT23 packages and is specified for operation over the -40°C to +125°C automotive temperature range.

• Supports Use of Small Current-Sense Resistors to Improve Power-Supply Conversion Efficiency and Measurement Accuracy
  • Input Bias Current of 80nA (max)
  • Very Low 2µV Input Offset Voltage (MAX44284F/H)
  • Extremely Low 50nV/°C Input Offset Tempco Coefficient
  • -0.1V to +36V Wide Input Common-Mode Range
  • Low 0.05% Gain Error

Extends Battery Life

• Low Supply Current of 21µA
• 1.7V to 5.5V Single Supply
• Shutdown Input (Independent of V_DD)

Four Fixed Gain Options Simplify Design

• 50V/V- MAX44284F
• 100V/V - MAX44284H
• 200V/V - MAX44284W
• 500V/V - MAX44284E
