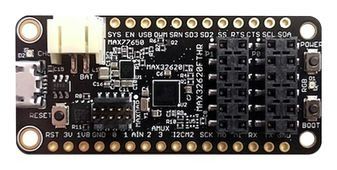

MAX32620 Ultra-Low-Power ARM Cortex-M4 with FPU-Based Microcontroller Evaluation Kit

The MAX32620 is a 32-bit RISC ARM Cortex -M4F (M4 plus Floating Point Unit) microcontroller. It is ideally suited for the emerging category of medical and fitness applications. The architecture combines high-efficiency, signal-processing functionality with low cost, and ease of use. The device features 4 powerful and flexible power modes. Built-in dynamic clock gating and firmware controlled power gating minimize power consumption for any application. Multiple SPI, UART, and I2C serial interfaces, as well as a 1-Wire master and USB, allow for interconnection to a wide variety of external sensors. A four-input, 10-bit ADC with selectable references is provided.

• High-Efficiency Microcontroller for Rechargeable Devices
  • Internal Oscillator Operates Up to 96MHz
  • Floating Point Unit
  • Memory Protection Unit
  • 2MB Flash Memory
  • 256KB SRAM
  • 8KB Instruction Cache
  • 1.2V ±5% Core Supply Voltage
  • 1.8V ±5% I/O and Analog Supply Voltage
  • Optional 3.3V ±5% USB Supply Voltage
• Tiny 81-Ball WLP Minimizes Board Space (3.9mm x 3.9 mm WLP, 0.4 mm Pitch)
• Power Management Maximizes Uptime for Battery Applications
  • 95µA/MHz Active Executing from Flash
  • 600nA Low Power (LP0) Mode with RTC Enabled
  • 2.5µA Ultra-Low Power Data Retention Mode (LP1) with Fast 5µs (typ) Wakeup to 96MHz
  • Peripheral Management Unit (PMU) Reduces Power Consumption in Measurement Mode (LP2)
• Optimal Peripheral Mix Provides Platform Scalability
  • Three SPI Masters, Four UARTs, Three I2C Masters, and One 1-Wire Master
  • 49 General-Purpose I/O Pins
  • SPI Execute in Place Engine for Memory Expansion with Minimal Footprint
  • Full-Speed USB 2.0 with Internal Transceiver
  • Sixteen Pulse Train Engines
  • Four-Input, 10-Bit Sigma-Delta ADC Operating at 7.8 kS/s
• Trust Protection Unit (TPU) Secures Valuable IP and Data (MAX32621 Only)
  • Robust Hardware Internal Security
  • High-Speed Modular Arithmetic Accelerator (MAA) Supports Fast ECDSA
  • AES Hardware Engine
  • Hardware PRNG Entropy Generator
  • Secure Boot Loader
