MAX2659 GPS/GNSS Low-Noise Amplifier Evaluation Kit

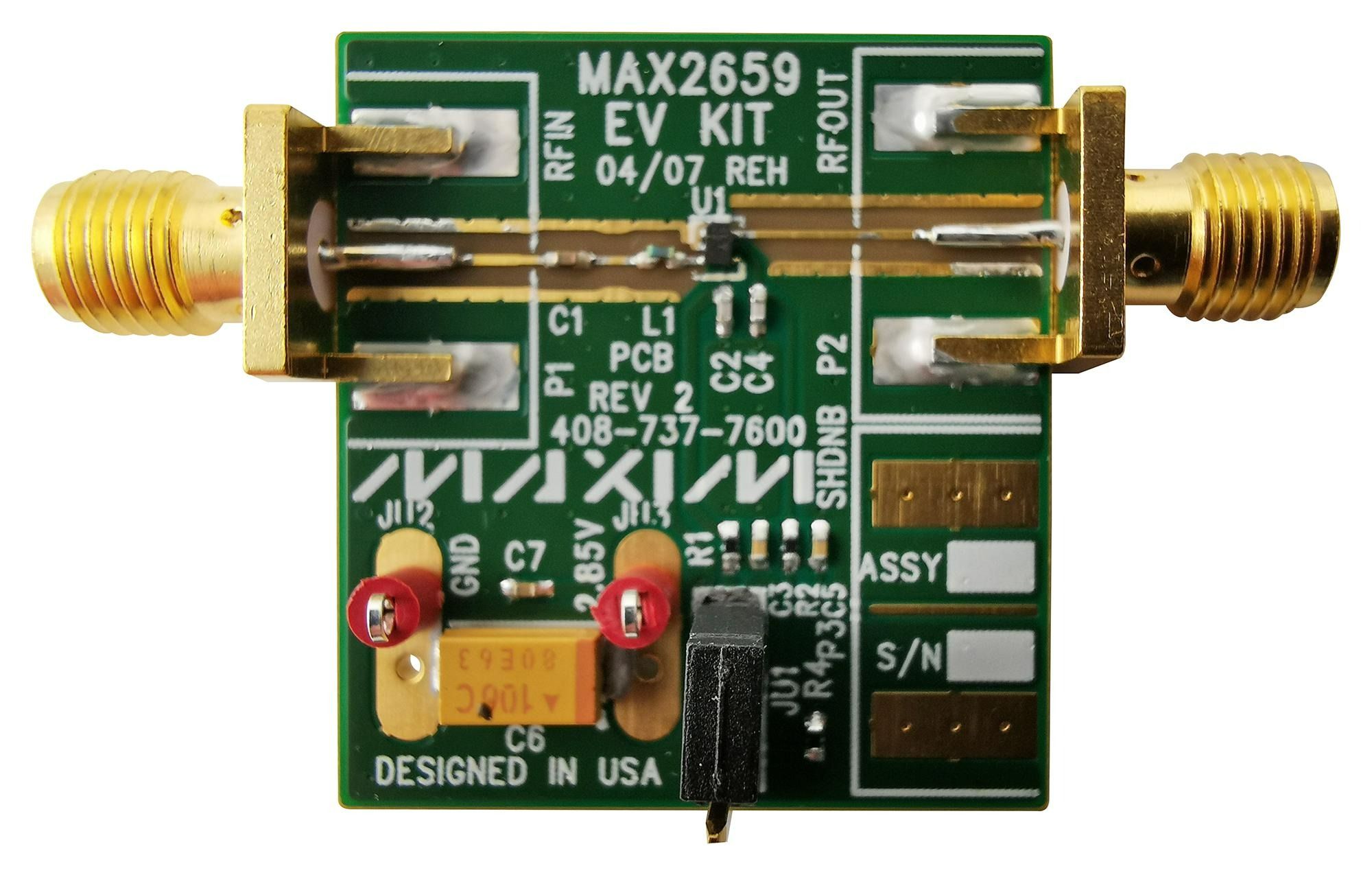

The MAX2659EVKIT+ evaluation kit (EV kit) simplifies evaluation of the MAX2659EVKIT+ GPS/GNSS low-noise amplifier (LNA). The MAX2659EVKIT+ high-gain, LNA is designed for GPS, Galileo, and GLONASS applications. The EV kit enables testing of the device’s performance and requires no additional support circuitry. The MAX2659EVKIT+ EV kit is fully assembled with the MAX2659EVKIT+ IC on-board and incorporates input matching components to optimize performance. The EV kit’s signal inputs and outputs use SMA connectors to facilitate the connection of RF test equipment.

• Easy Evaluation of the MAX2659 IC
• 1.6V to 3.3V Single-Supply Operation
• RF Input and Output Matched to 50O
• Jumper Included for Shutdown Setting
• Fully Assembled and Tested
• -40°C to +85°C Temperature
• 6 µdfn Package
