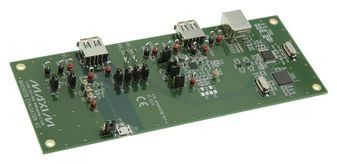

MAX14578E USB Battery Charger Detector Evaluation Kit

The MAX14578 evaluation kit (EV kit) provides a proven design to evaluate the MAX14578 USB battery charger detector in a 12-bump wafer-level package (WLP). The IC features charger detection compliant to USB Battery Charging Revision 1.1, dedicated charger detection, Apple charger detection, China YD/T1591-compliant charger detection, and USB pass-through communication. The EV kit has various power options to separate the charging current from the system current. The EV kit is self-powered through USB, but needs external power to demonstrate charging. The EV kit features the MAX8903A 1-cell lithium-ion (Li+) DC-DC USB charger for interfacing with the MAX14578 in an application setting. The EV kit uses Windows XP -, Windows Vista -, and Windows 7-compatible software to provide a simple graphical user interface (GUI) to simplify evaluation. The EV kit GUI enables testing of the IC"s features. The EV kit PCBs come with a MAX14578EEWC+ installed.

• Windows XP-, Windows Vista-, and Windows 7-Compatible Software
• GUI Simplifies Learning the IC’s Operation
• Includes MAX8903A USB Charger for Application Testing
• Can be USB Powered or Externally Powered for Greater Charging Current
• Proven PCB Layout
• Fully Assembled and Tested
