MAX11200 24-Bit Single-Channel Delta-Sigma ADC Evaluation Kit

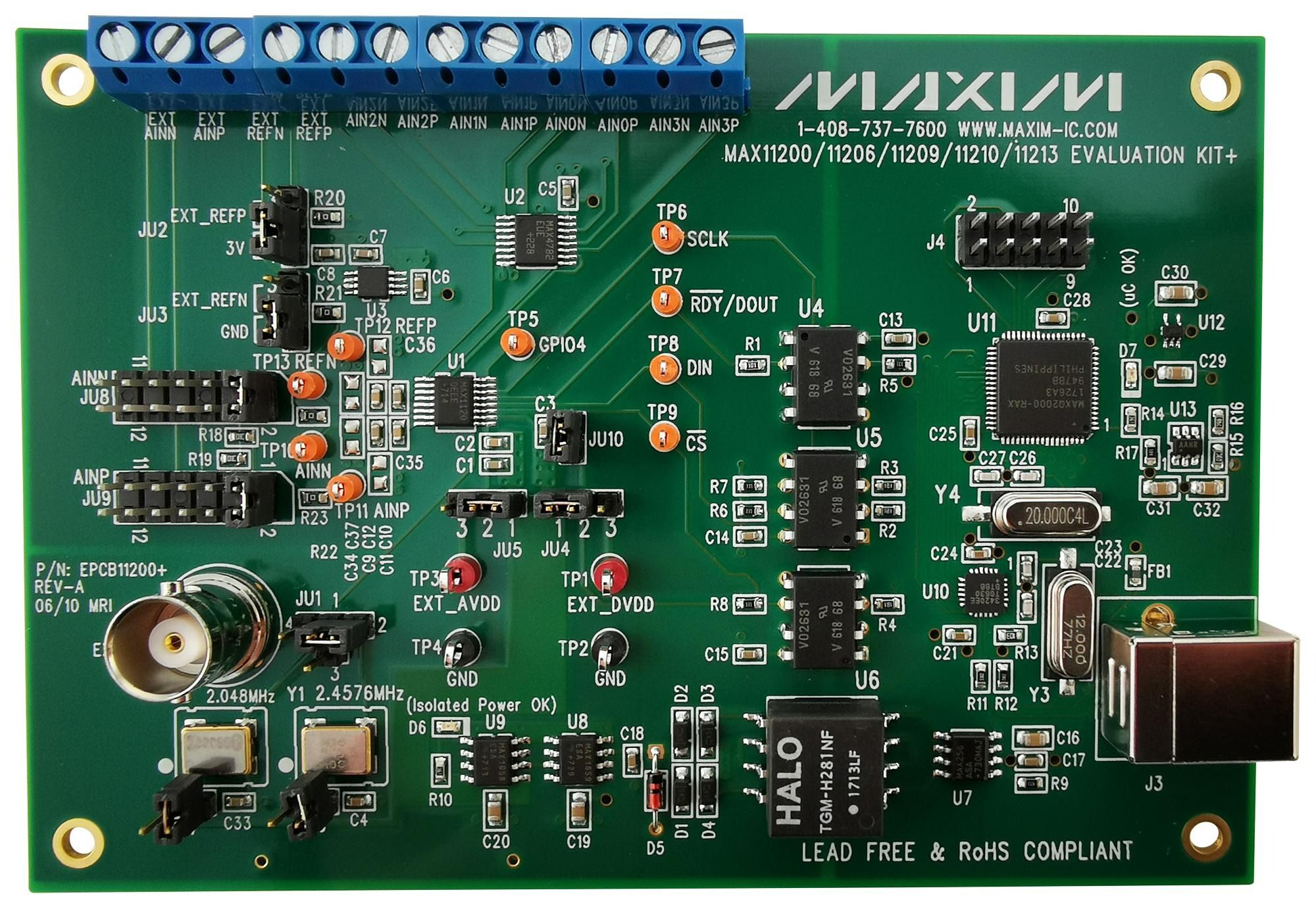

The MAX11200, MAX11206, MAX11209, MAX11210, and MAX11213 evaluation kits (EV kits) consist of one MAX11200, MAX11206, MAX11209, MAX11210, or MAX11213 evaluation board and software. The EV kits are fully assembled and tested circuit boards that evaluate the MAX11200 family of ultra-low-power, high-resolution, serial output ADCs. The EV kits include Windows XP -, Windows Vista -, and Windows 7-compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX11200 family of data converters. The EV kits are connected to a PC through a USB A-to-B cable.

• Windows XP-, Windows Vista-, and Windows 7-Compatible Software
• USB-PC Connection (Cable Included)
• USB Powered (No External Power Supply Required)
• On-Board Isolated Power Supplies Rejecting Power Line Noise
• On-Board Optocouplers Isolating ADC from Other Circuitry
• Real-Time Data Acquisition through USB
• Proven PCB Layout
