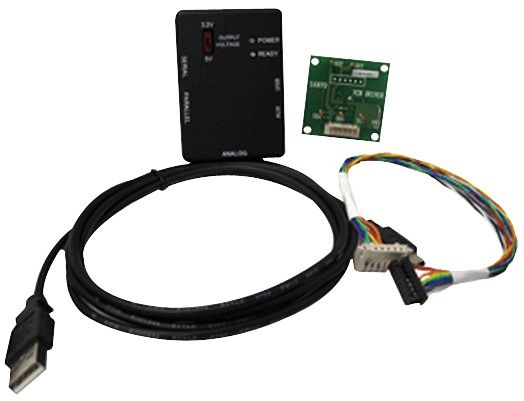

LV8498CT Constant Current Driver LSI Evaluation Board Kit

The LV8498CT is a constant current driver IC for voice coil motors that supports IC control integrating a digital/analog converter (DAC). It uses an ultraminiature WLP package and includes a current detection resistor for constant current control, which makes the IC ideal for miniaturization of camera modules intended for use in camera-equipped mobile phones. The output transistor has a low on-resistance of 1 O and the resistance of the built-in current detection resistor is 1 O, which minimizes the voltage loss and helps withstand voltage drop in VCC. The function is incorporated, which, by changing the current in a stepped pattern while taking time at rise and fall of the output current, provides the current a slope, improving the converging stability of the voice coil motor (current slope function).

• I^{2C bus control supported.}
• Wide operating voltage range (2.2 to 5.0V).
• Built-in current detection resistor.
• 6-pin WLP package used (1.270.870.25mm).
• Built-in voltage drop protection circuit (VCC = 2V output off).
• Built-in thermal protection circuit.
• Constant current control enabled by 10bit DAC
• Less External Component
• Stand-by current: 0A
• Constant current driver for voice coil motors.
• Low output block total-resistance of 2O helps withstand voltage drop in VCC. (Current detection resistance + output
  transistor on-resistance).
• Built-in VCM overshoot preventive function (current slope function).
• Power supply Voltage: 2.2 to 5.0V
