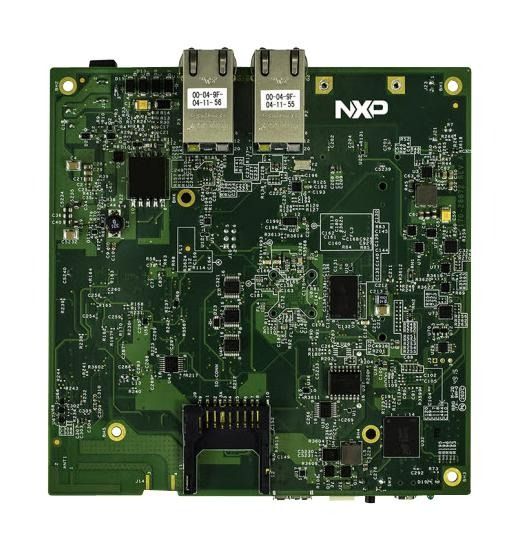

LS1012A QorIQ Layerscape Reference Design Board

The QorIQ LS1012A processor, optimized for battery-backed or USB-powered, space-constrained networking and IoT applications, integrates a single ARM Cortex-A53 core running up to 800 MHz with a hardware packet forwarding engine and high-speed interfaces to deliver line-rate networking performance in an ultra-small size envelope at 1W typical power dissipation. The LS1012A incorporates the same Trust Architecture and software compatibility of higher-tier QorIQ LS family devices, enabling scalable, secure applications that leverage a common 64-bit software platform.

• Single 600 or 800 MHz ARM Cortex-A53 core
• 32 KB-I and 32 KB-D ECC protected cache
• 256 KB L2 ECC protected cache
• Over 2000 Coremarks performance
• Three-lane SerDes up to 6 GHz multiplexed across controllers supporting
  • One PCI Express® Gen 2 interface
  • One SATA 3.0 Interface
  • Two 1Gb or 2.5Gb Ethernet Controllers
• Packet Forwarding Engine
• Integrated security engine (SEC)
• 16-bit DDR3L Memory Controller
• QuadSPI Flash Memory Interface
• 1x USB 3.0 + PHY
• 1x USB 2.0 + ULPI
• 1x SPI, 2x I2C
• 2x SD3.0 / SDIO / eMMC
• 2x UART
• 5x I²S
• QorIQ® Trust Architecture
• ARM TrustZone
• 9.6 x 9.6mm L-BGA package
