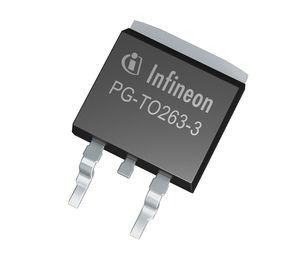

Low Drop Linear Voltage Regulator Pos 10V 0.4A 3-Pin(2+Tab) TO-263 T/R

Low Drop Linear Voltage Regulator Pos 10V 0.4A 3-Pin(2+Tab) TO-263 T/R

The TLE 4274 is a low drop voltage regulator available in a TO220, TO252 and TO263 package. The IC regulates an input voltage up to 40 V to V Qrated = 5.0 V (V50), 8.5 V (V85) and 10 V (V10). The maximum output current is 400 mA. The IC is short-circuit proof and incorporates temperature protection that disables the IC at over temperature. A 3.3 V and 2.5 V version is also available.
  • Output voltage 5 V, 8.5 V or 10 V
  • Output voltage tolerance = ±4%
  • Current capability 400 mA
  • Low-drop voltage
  • Very low current consumption
  • Short-circuit proof
  • Reverse polarity proof
  • Suitable for use in automotive electronics
  • Green Product (RoHS compliant) version of TLE 4274
  • AEC qualified
  • Wide Temperature Range  40 °C = T j  = 150 °C

    • Характеристики

    Бренд Infineon
    Polarity Positive
    Typical D 0.25@250mA V
    Screening Level Automotive
    Рабочая температура -40 to 150 °C
    Output Type Fixed
    Line Regulation 25 mV
    Number Of 1
    Input Vol 40, 10.5 V
    Output Voltage 10 V
    Maximum D 0.5@250mA V
    Описание продукта 10.25 x 9.9 x 4.4 mm
    Supplier TO-263
    Output Current 0.4 A
    Function LDO
    Load Regulation 50 mV
    Minimum I 10.5 V
    Maximum I 40 V
    Accuracy 4 %
    Schedule B 8542390000
    HTSN 8542390001
    Страна происхождения United States
    Junction 52 K/W
    Junction 4 K/W
    SKU: TLE4274GV10XT Поставщик: по запросу
