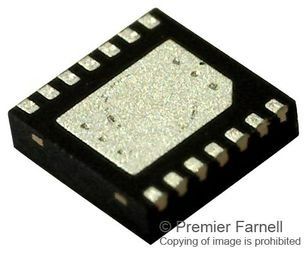

Logic Level Translator 14-Pin TDFN EP

The MAX14611 is a quad bidirectional logic-level translator that provides the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. A low-voltage logic signal present on the VL side of the device appears as a high-voltage logic signal on the VCC side of the device, and vice-versa. The device is ideal for I²C bus as well as MDIO bus applications where open-drain operation is often required. The device features a three-state output mode (active-low TS). Drive active-low TS high to connect the pullup to the powered I/O port. This allows for continuous, undisrupted I²C operation on the powered side of the device while the level translation function is off. The MAX14611 is a pin-to-pin compatible upgrade to the MAX3378E in the TDFN package. The MAX14611 features enhanced high-electrostatic-discharge (ESD) protection on all I/OVCC_ ports up to ±6kV HBM. The device operates over the -40°C to +85°C extended temperature range and is available in 3mm x 3mm, 14-pin TDFN and 4.9mm x 5.1mm, 14-pin TSSOP packages.

• Improved Interoperability
  • Meets I²C Specifications
  • 10kO Internal Pullup Resistor
  • Pin-to-Pin Compatible with the MAX3377E and the MAX3378E
  • 0.9V Operation on Low Voltage Supply

Robust Logic-Level Translation

• ±0.5V Tolerances on All Pins
• ±6kV Human Body Model ESD Protection on I/OVCC_ Lines
• Thermal Short-Circuit Protection
• Short to Ground Fault Protection on All Pins
• -40°C to +85°C Operating Temperature Range

Increased Design Flexibility

• Ultra-Low Supply Current
• Pullup Resistor Enabled with a Single Power Supply when Active-Low TS = High
• 10O (max) Transmission Gate FET
• Small, 14-Pin, 3.0mm x 3.0mm TDFN Package and 14-Pin, 4.9mm x 5.1mm TSSOP Package
