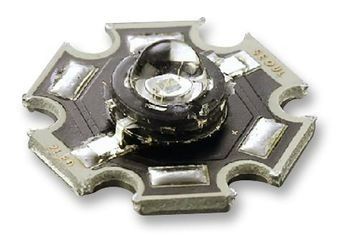

LED Uni-Color Amber T/R
Z-Power series is designed for high current operation and high flux output applicationsZ-Power LED"s thermal management perform exceeds other power LED solutions. It incorporates state of the art SMD design and Thermal emission materialZ Power LED is ideal light sources for general illumination applications, custom designed solutions, automotive large LCD backlights
- Illumination Color: Amber
- Super high flux output and high luminance
- Designed for high current operation
- Low thermal resistance
- SMT solderability
- Lead free product
- RoHS compliant
Характеристики
| Бренд | Seoul Semiconductor |
|---|---|
| Number Of Leds | 1 |
| Type Prod | Chip LED |
| Viewing Angle | 130 ° |
| Dominant | 590 nm |
| Maximum P | 2400 mW |
| Описание продукта | 19.9 x 19.9 x 6.78 mm |
| Maximum F | 800 mA |
| Category | Chip LED |
| Lens Shape Type | Circular |
| Maximum F | 3 V |
| Mounting | Top Mount |
| Цвет | Amber |
| Рабочая температура | -40 to 85 °C |
| Schedule B | 8541402000 |
| HTSN | 8541402000 |
| Lens Dimensions | 5.6x5.6x2.7 mm |
| Luminous Flux | 48 lm |
SKU: A42182
