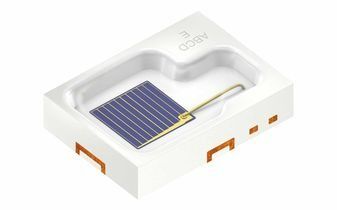

LED IrLED 3-Pin SMD T/R
LED IrLED 3-Pin SMD T/R
- IR lightsource with high efficiency
- Double Stack emitter
- Low thermal resistance (Max. 11 K/W)
- Centroid wavelength 850 nm
- ESD safe up to 2 kV acc. to ANSI/ESDA/JEDEC JS-001-HBM, Class 2
- Superior Corrosion Robustness (see chapter package outlines)
- The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.
Характеристики
| Бренд | Osram Opto Semiconductors |
|---|---|
| Max Proce | 260 |
| Reverse Voltage | 1 V |
| Number Of Leds | 1 |
| Msl Level | 2 |
| Type Prod | IrLED |
| Viewing Angle | 150 ° |
| Supplier | SMD |
| Описание продукта | 3.85 x 3.85 x 1.63 |
| Maximum F | 1000 mA |
| Category | IrLED |
| Lens Shape Type | Circular |
| Peak Wavelength | 860 nm |
| Lead Finish | Tin|Silver|Copper |
| Intensity | 225 mW/sr |
| Maximum F | 2.9 V |
| Mounting | Top Mount |
| Рабочая температура | -40 to 85 °C |
| Schedule B | 8541402000 |
| HTSN | 8541402000 |
| Страна происхождения | Malaysia |
| Lens Dimensions | 2.8 x 0.97 mm |
| Screening Level | Industrial |
SKU: SFH 4716S
