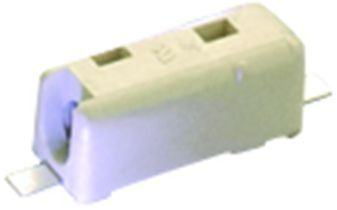

LED Interconnection RCP 1 POS RA

The low profile SMT and Thru-Hole Poke-In Wire connectors are designed for lighting applications.

• Connectors are available in 1 position
• Standard and Low Insertion Force connectors available
• Accepts 18, 20 and 22 AWG solid wire;
  • 18 and 20 AWG pre-bond stranded wire;
  • 18 AWG stranded wire
• Connectors are available in both black and white colors for polarity
• Gel-filled versions are available for indoor moisture and outdoor application
• Low profile design
• Rounded corners to minimize shadowing
• Flat top surface allows for vacuum pickup
• High temperature material for reflow processing
• Redundant SMT pads prevent peeling
• Side by side stackable with pads on 4mm centers
• Tape and reel packaging for high speed SMT and Thru Hole processing
• RoHS compliant
• Cost effective alternative to hand soldering wires to printed circuit boards
