LED Driver 2-Ch 6 LEDs None 5.5V 24-Pin VCSP Emboss T/R

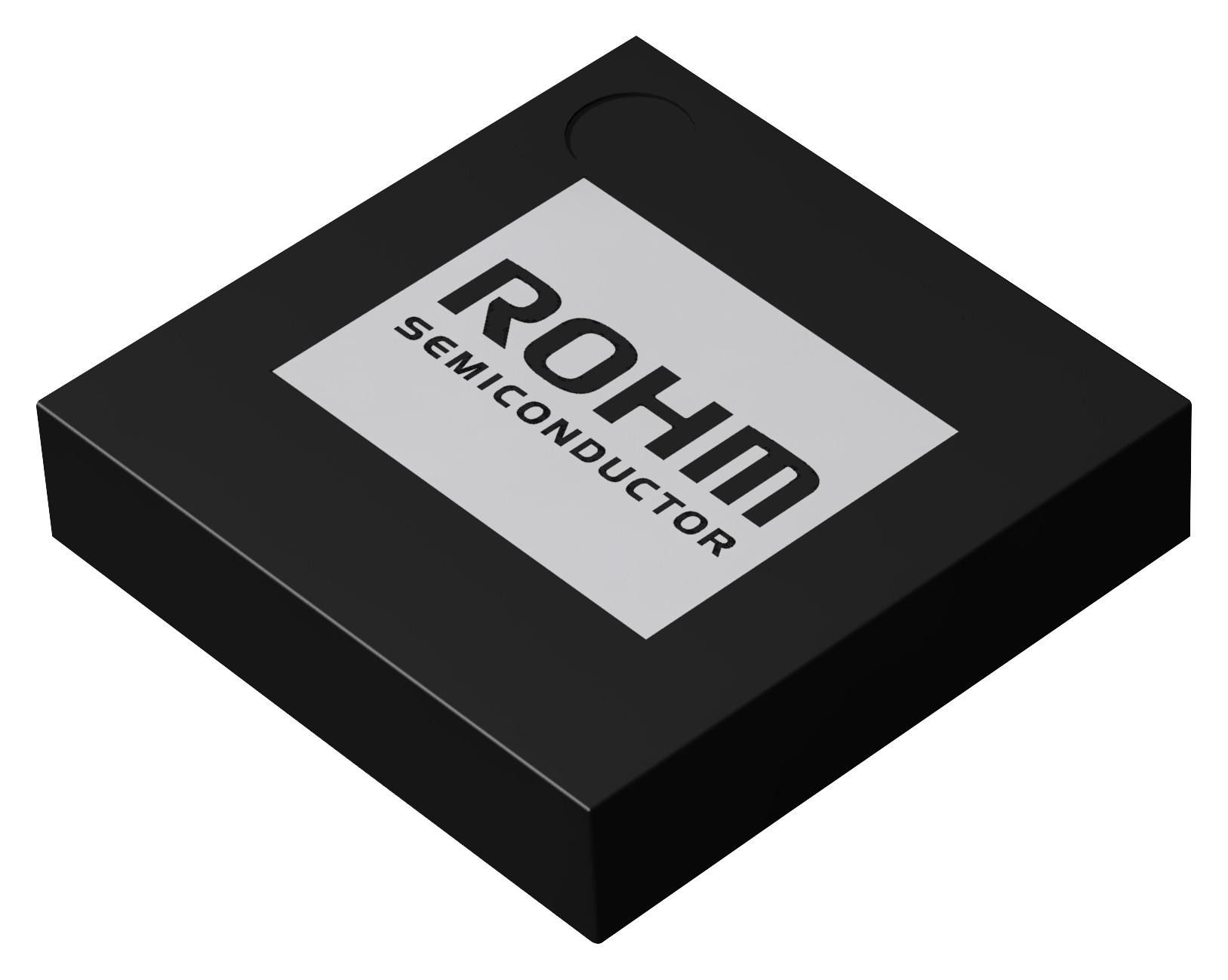

The BD2802GU is a RGB LED driver specifically engineered for decoration purposes. This RGB driver incorporates lighting patterns and illuminates without imposing any load on CPU. This RGB driver is best-suited for illumination using RGB LEDs and decoration using monochrome LEDs. In addition, this RGB driver has been successfully miniaturized through the use of a VCSP85H2 (2.8 mm 0.5 mm pitch) chip size package.

• RGB LED driver (dual drivers)
  • A slope control function is incorporated (allowing dual drivers to be controlled independently).
  • Slope control can be implemented using the DC current.
  • Two modes “continuous illumination mode” and “illumination single cycle mode” are supported.
  • Independent external ON/OFF synchronizing terminals (of dual drivers) are provided.
  • Multiple drivers can be used concurrently by using the I2C address change function and supporting reference clock I/O
• Thermal shutdown
• I2C BUS fast mode support (maximum rate: 400 kHz)
  • A device address can be changed via an external pin.
