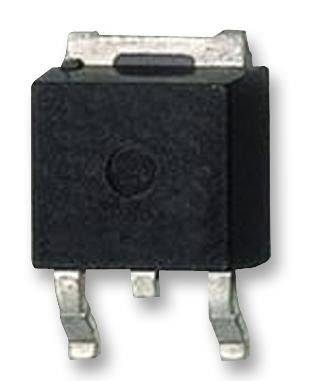

LDO Regulator Pos 5V 1A 5-Pin TO-252 Emboss T/R
LDO Regulator Pos 5V 1A 5-Pin TO-252 Emboss T/R
Характеристики
| Бренд | ROHM |
|---|---|
| Polarity | Positive |
| Typical D | 0.3@500mA V |
| Screening Level | Industrial |
| Рабочая температура | -25 to 85 °C |
| Output Type | Fixed |
| Line Regulation | 80 mV |
| Number Of | 1 |
| Input Vol | 6 to 26.5 V |
| Output Voltage | 5 V |
| Max Proce | 260 °C |
| Maximum D | 0.5@500mA V |
| Описание продукта | 6.5 x 5.5 x 2.3 mm |
| Supplier | TO-252 |
| Output Current | 1 A |
| Function | LDO |
| Load Regulation | 100 mV |
| Minimum I | 6 V |
| Maximum I | 26.5 V |
| Accuracy | 1 % |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Junction | 115.3 °C/W |
| Msl Level | 1 |
| Lead Finish | Pure Tin |
SKU: BD50FC0FP-E2
