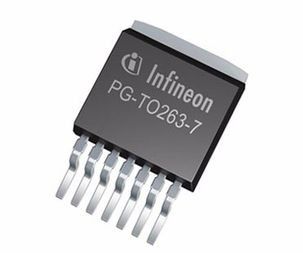

LDO Regulator Pos 5V 0.55A 8-Pin(7+Tab) TO-263
The TLE 4271-2 is functional and electrical identical to TLE 4271. The device is a 5-V low drop fixed voltage regulator. The maximum input voltage is 42 V (65 V, = 400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA. The IC can be switched off via the inhibit input. An integrated watchdog monitors the connected controller. The device incorporates overvoltage protection and temperature protection that disables the circuit at over temperature
- Output voltage tolerance = ±2%
- Low-drop voltage
- Integrated overtemperature protection
- Reverse polarity protection
- Input voltage up to 42 V
- Overvoltage protection up to 65 V (= 400 ms)
- Short-circuit proof
- Suitable for use in automotive electronics
- Wide temperature range
- Adjustable reset and watchdog time
- Green Product (RoHS compliant)
- AEC Qualified
Характеристики
| Бренд | Infineon |
|---|---|
| Polarity | Positive |
| Typical D | 0.35@550mA V |
| Screening Level | Automotive |
| Рабочая температура | -40 to 150 °C |
| Output Type | Fixed |
| Number Of | 1 |
| Input Vol | 40, 6 V |
| Output Voltage | 5 V |
| Max Proce | 260 |
| Maximum D | 0.7@550mA V |
| Описание продукта | 10 x 9.25 x 4.4 mm |
| Supplier | TO-263 |
| Output Current | 0.55 A |
| Function | LDO |
| Load Regulation | 50 mV |
| Minimum I | 6 V |
| Maximum I | 40 V |
| Accuracy | 2 % |
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | United States |
| Junction | 70 K/W |
| Msl Level | 1 |
| Lead Finish | Matte Tin |
| Junction | 3 K/W |
SKU: TLE 4271-2 G
