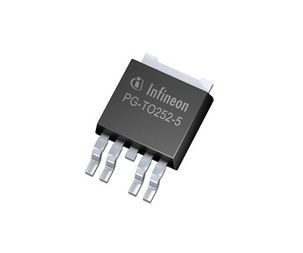

LDO Regulator Pos 5V 0.3A 5-Pin(4+Tab) TO-252

The TLE7270-2 is a monolithic integrated low dropout voltage regulator for load currents up to 300 mA. An input voltage up to 42 V is regulated to V Q,nom = 5.0 V with a precision of ±2%. Due to its integrated reset circuitry featuring power on timing and output voltage monitoring the IC is well suited as µ-controller supply. The sophisticated design allows to achieve stable operation even with ceramic output capacitors down to 470 nF. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and over temperature conditions by the implemented output current limitation and the over temperature shutdown circuit. The TLE7270-2 can be also used in all other applications requiring a stabilized 5 V voltage.

Ultra Low Current Consumption 20 µA

Output Voltage 5 V ±2%

Output Current up to 300 mA

Power-On and Under voltage Reset

Reset Low Down to V _Q  = 1 V

Very Low Dropout Voltage

Output Current Limitation

Over temperature Shutdown

Wide Temperature Range From -40 °C up to 150 °C

Green Product (RoHS compliant)

AEC Qualified
