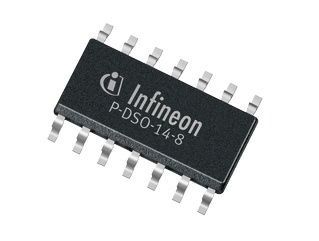

LDO Regulator Pos 3.3V 0.18A 14-Pin DSO

The TLE7279-2 is a monolithic integrated voltage regulator with early warning and reset dedicated for microcontroller supplies under harsh automotive environment conditions. Due to its ultra low quiescent current the TLE7279-2 is perfectly suited for applications permanently connected to battery. In addition the regulator can be shut down via the Enable input causing the current consumption to drop below 3 µA. The TLE7279-2 is equipped with an output current limitation and an over temperature shutdown protecting the device against overload, short circuit and over temperature. It operates in the wide junction temperature range from -40 °C to 150 °C.

Output voltage 5 V, 3.3 V or 2.6 V

Output voltage tolerance ±2%

Output current up to 180 mA

Ultra low quiescent current consumption < 36 µA

Enable function

Very low dropout voltage

Reset with adjustable power-on delay

Input Voltage Sense (Early Warning)

Output protected against short circuit

Wide operation range: up to 45 V

Wide temperature range: -40 °C to 150 °C

Over temperature protection

Overload protection

Green Product (RoHS compliant)

AEC Qualified
