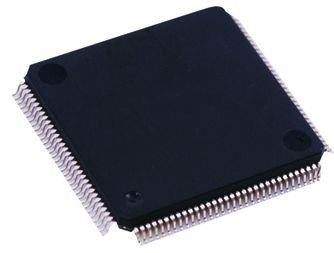

LCD Display Driver 216-Pin LQFP

The TW8823C incorporates many of the featuresrequired to create a multi-purpose in-car LCD displaysystem into a single package. It integrates a high quality3D comb NTSC/PAL/SECAM video decoder, triple highspeed RGB ADCs, high quality scaler, bit-mapped OSD,triple DACs and image enhancement functions whichinclude Black and White Stretch, favorite colorenhancement, etc. It also supports panoramic scaling forconversion to wide screen display format. On the inputside, it supports a rich combination of CVBS, S-video,analog RGB as well as digital YCbCr/RGB. On the outputside, it supports both digital and analog panel types withits built-in timing controller and analog RGB output. Inaddition, the TW8823C supports LVDS type panels. The TW8823C also has two PIP (Picture in Picture)engines that can display three display sourcessimultaneously in a single window. It also has a built-inbit-mapped OSD with 16-bit color depth and anacceleration function. It can also accept 18-bit externalOSD inputs. In addition, TW8823C has a built-in highperformance microcontroller with cache. Its SPI interfacesupports various serial flash types.

• NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination), PAL (60), SECAM with automatic format detection
• Two 10-bit ADCs and analog clamping circuit
• Fully programmable static gain or automatic gain control for the Y or CVBS channel
• Programmable white peak control for the Y or CVBS channel
• Software selectable analog inputs allows either composite or S-video input
• High quality motion adaptive 3D comb filter for both NTSC and PAL with concurrent 3D noise reduction
• PAL delay line for color phase error correction
• Image enhancement with 2D dynamic peaking and CTI
• Digital sub-carrier PLL for accurate color decoding
• Digital horizontal PLL and Advanced synchronization processing for VCR playback and weak signal performance.
• Programmable hue, brightness, saturation, contrast, sharpness
• High quality horizontal and vertical filtered down scaling with arbitrary scale down ratio
