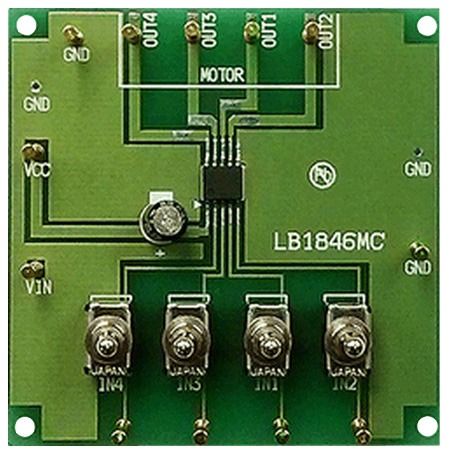

LB1846MC Bidirectional Motor Driver Evaluation Board

The LB1846MC is a single-channel low saturation voltage stepping motor driver IC. It is optimal for motor drive in 5V system products and it can drive a stepping motor in Full-step and Half-step. Also LB1846MC is suitable for use with gas burner for its latch valve drive. The latch valve functions as a safety device to prevent gas leakage.

Saturation drive H bridge: 4 channels

Built-in thermal protection circuit

Built-in low voltage malfunction prevention circuit

Incorporates a transistor for driving photo sensors

BIP output transistor adoption(Upper and lower total Vo(sat)=0.55V(typical) at Io=400mA)

For one power supply (The control system power supply is unnecessary.)

Our motor driver IC, LB1973JA, and compatible functions

It is possible to connect it in parallel (parallel, connected operation of drive ch)

The compact package (MFP10SK) is adopted

VCC max =8v, IO max = 0.8A

Built-in Thermal protection function

Current consumption 0 when standing by
