LAN9514 High-Speed 10/100 Ethernet Hub Customer Evaluation Board

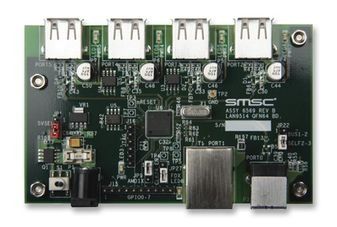

The EVB9514 is an Evaluation Board EVB that utilizes the LAN9514 to provide a four port USB 2.0 hub with an integrated 10/100 Ethernet controller. The EVB9514 provides USB connectivity via one type B upstream USB connector and four type A downstream USB connectors. An RJ-45 integrated magnetics Ethernet jack with link/activity LEDs provides 10/100 Ethernet connectivity. The EVB9514 supports both bus-powered and self-powered modes of operation.

• The EVB9514 provides USB connectivity via one type B upstream USB connector and four type A downstream USB connectors
• An RJ-45 integrated magnetics Ethernet jack with link/activity LEDs provides 10/100 Ethernet connectivity
• The EVB9514 supports both bus-powered and self-powered modes of operation
