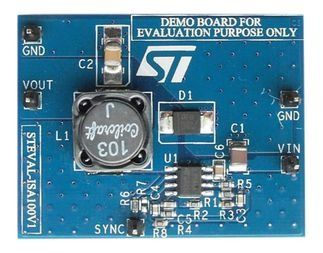

L7986A 3A Step-Down Switching Demonstration Board

The STM-STEVAL-ISA100V1 demonstration board is a step-down switching power supply based on the L7986A in HSOP8 package. The L7986A is a step-down switching regulator with a 3.7 A (minimum) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions. The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN. Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz. 3 A DC output current 4.5 V to 38 V input voltage Output voltage adjustable from 0.6 V 250 kHz switching frequency, programmable up to 1 MHz Internal soft-start and enable Low dropout operation: 100% duty cycle Voltage feed-forward Zero load current operation Overcurrent and thermal protection RoHS compliant
