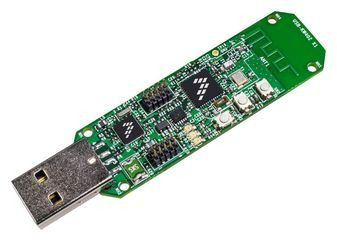

Kinetis W Microcontroller Bluetooth Packet Sniffer USB Dongle Board

The USB-KW40Z is a development platform enabled by the Kinetis W series KW40Z/30Z/20Z (KW40Z) family built on the ARM Cortex -M0+ processor in a convenient USB dongle form factor. The USB-KW40Z can be used as a Bluetooth Smart/Bluetooth Low Energy and/or IEEE 802.15.4 packet sniffer or development board. Packet sniffers are essential for wireless network development allowing over-the-air traffic monitoring.

• Supports MKW40Z160VHT4, MKW30Z160VHM4, MKW20Z160VHT4 Kinetis W MCUs
• Integrated MK22FN512VMP12 MCU
• Radio (RF) Features
• High performance 2.4 GHz transceiver supporting Bluetooth Low Energy (BLE) v4.1 and IEEE 802.15.4-2011
• -91 dBm BLE and -102 dBm 802.15.4 receive sensitivity
• Up to +5 dBm programmable transmit output power
• 6.5 mA / 8.4 mA Rx/Tx power consumption (DC/DC enabled)
• Chip antenna
• Minimum number of matching components and external balun
• Software/Protocol Stacks
  • Bluetooth Low Energy Host Stack and Application Profiles
  • Thread (end device only)
  • ZigBee Pro and Application Profiles
  • IEEE 802.15.4-2011 MAC/PHY
  • NXP Simple MAC (SMAC)
• OpenSDA debug interface
• USB Type A Connector
