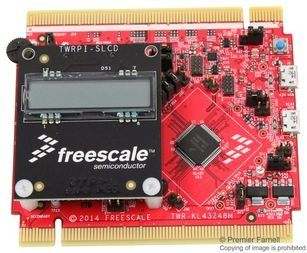

Kinetis L KL43 Microcontroller Tower Board

The TWR-KL43Z48M Tower System Module is based on a 48 MHz ARM Cortex -M0+ MKL43Z256VLH4 MCU and is a development tool for the Kinetis KL43, KL33, KL27, KL17 families. The TWR-KL43Z48M MCU module is designed to work either in standalone mode or as part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. The TWR-KL43Z48M is supported by a range of Freescale and third-party development software.

Tower System-compatible MCU module

MKL43Z48M MCU (48 MHz, 256KB Flash, 32 KB RAM, 16KB ROM based bootloader, low power, sLCD controller, 64 LQFP package

Segment LCD Module(TWRPI-SLCD)

Dual role USB interface with Micro-AB USB connector

Touch Tower plug-in socket (with TSS only)

General purpose Tower Plug-in (TWRPI) socket

On-board debug circuit MK20D50 openSDA with virtual serial port

6-Axis Xtrinsic Sensor with Integrated Linear Accelerometer and Magnetometer (FXOS8700CQ)

Four (4) user-controllable LEDs

Two (2) user push button switch

Infrared transmit and receive

Potentiometer for ADC measurements

General-purpose pin header to directly access MCU signals

Software support and application development is offered through the Kinetis software development kit (SDK), an extensive suite of robust peripheral drivers, stacks and middleware (replacing Sample Code Packages/examples). Get expert advice and support by joining the Kinetis Software Development Kit Community forum.
