Kinetis E KE02 20MHz Microcontroller Freedom Development Platform

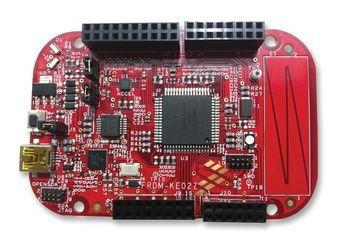

The Freedom development platform is a set of software and hardware tools for evaluation and development ideal for rapid prototyping of MCU-based applications. The NXP Freedom KE02Z hardware, FRDM-KE02Z, is a simple yet sophisticated design featuring a Kinetis E series MCU, the industry’s first 5-volt MCU built on the ARM Cortex -M0+ core.

• MKE02Z64VQH2 MCU – 20 MHz, 64 KB Flash, 4 KB SRAM, 64QFP
• Capacitive touch slider, MMA8451Q accelerometer, tri-color LED
• USB or external power supply options
• Easy access to MCU I/O
• IrDA transmitter and receiver
• Thermistor sensor to measuring temperature
• Form factor compatible with Arduino™ R3 pin layout
• New, OpenSDA debug interface
  • Mass storage device flash programming interface (default)
  • no tool installation required to evaluate demo apps
  • P&E Debug interface provides run-control debugging and compatibility with IDE tools
  • CMSIS-DAP interface: new ARM standard for embedded debug interface
