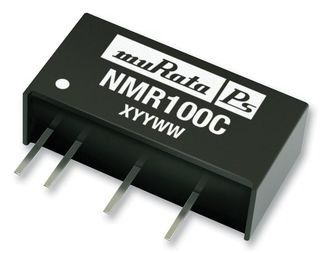

ISOLATED 1W SINGLE OUTPUT DC/DC CONVERTERS

The NMR series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing single rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. Surface mount technology and advanced packaging materials produce rugged reliable performance over an extended temperature range from -40ºC to 85ºC.

• RoHS compliant
• 1kVDC isolation
• Efficiency up to 80%
• Wide temperature performance at full 1 watt load, –4°C to 85°C
• Power density up to 0.90W/cm3
• UL 94V-0 package material
• Footprint from 1.17cm2
• Industry standard pinout
• No heatsink required
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• Custom solutions available
• No electrolytic or tantalum capacitors
• 24V nominal input voltage
• 5V output voltage
