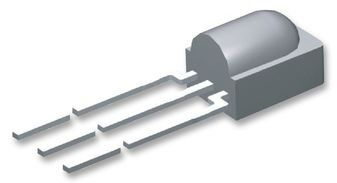

IR Remote Receiver 38KHz 40m 3-Pin
These products are miniaturized IR receiver modules for infrared remote control systems. A PIN diode and a preamplifier are assembled on a leadframe, the epoxy package contains an IR filter.The demodulated output signal can be directly connected to a microprocessor for decoding.The TSOP584 series devices are optimized to suppress almost all spurious pulses from Wi-Fi and CFL sources. They may suppress some data signals if continuously transmitted.These components have not been qualified according to automotive specifications.
- Carrier frequency: 38KHz
- Improved immunity against HF and RF noise
- Low supply current
- Photo detector and preamplifier in one package
- Internal filter for PCM frequency
- Supply voltage: 2.5 V to 5.5 V
- Improved immunity against optical noise
- Insensitive to supply voltage ripple and noise
Характеристики
| Бренд | Vishay |
|---|---|
| Schedule B | 8517620050 |
| HTSN | 8517620090 |
| Страна происхождения | Philippines |
| Рабочая температура | -25 to 85 °C |
| Viewing O | 90 ° |
| Transmiss | 40 m |
| Описание продукта | 5 x 4.8 x 6.95 mm |
| Supply Current | 1.05 mA |
| Operating | 2.7 to 5.5 V |
| Output Current | 5 mA |
SKU: TSOP58438
