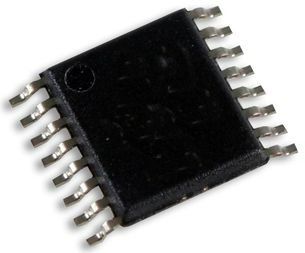

Integrated Power Over Ethernet Interface and Current Mode PWM Controller 16-Pin HTSSOP EP Tube

The PM8800A integrates a standard power over Ethernet (PoE) interface and a current mode PWM controller to simplify the design of the power supply sections of all powered devices.The PoE interface incorporates all the functions required by the IEEE 802.3af including detection, classification, under-voltage lockout (UVLO) and in-rush current limitation.PM8800A specifically targets PD with extended power requirement with respect to the limit imposed by the 802.3af standard, embedding a hot-swap MOSFET capable of sustaining twice the current of the 802.3af standard with a programmable DC current limit.The integrated switching regulator has been designed to work with power either form the Ethernet cable connection or from an external power source such as AC adapter. The DC-DC section of the PM8800A features a programmable oscillator frequency, soft-start, slope compensation and embeds a voltage output error amplifier allowing use in both isolated and non isolated configuration.

IEEE 802.3af compliant PD interface

Works with power supplied from Ethernet LAN cables or from local auxiliary sources

Integrated 100V, 0. 5?, 800mA Hot-Swap MOSFET

Integrated signature resistor

Programmable in-rush current limit

Programmable classification current

Programmable DCcurrent limit up to 800 mA

High voltage start-up bias regulator

Thermal shutdown protection

Current mode pulse width modulator

Programmable oscillator frequency

Programmable soft-start

Power good indication

80% maximum duty cycle with internal slope compensation

Supports both isolated and non-isolated applications.
