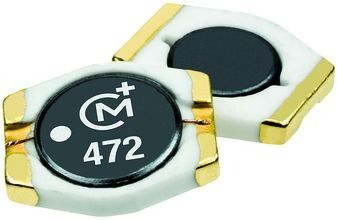

Ind Power Wirewound 4.7uH 20% 1.6A T/R
The 2700 series is a range of ultra-low profile, surface-mount power inductors. They are designed for use in power applications with restricted height, such as handheld devices, DC-DC converters and notebook computers. The products are supplied in tape and reel for high-volume, automated surface-mount assembly.
- RoHS compliant
- Up to 1.6A IDC
- 4.7µH to 1mH
- Low RDC
- Ultra-low profile
- UL 94V-0 packaging materials
- J-STD-020D reflow
- Custom inductance values available
Характеристики
| Бренд | Murata |
|---|---|
| Msl Level | 1 |
| Рабочая температура | -40 to 125 °C |
| Lead Finish | Gold |
| Tolerance | 20 % |
| Technology | Wirewound |
| Max Proce | 260 |
| Описание продукта | 9.2 x 7.9 x 1.65 |
| Длина | 9.2 mm |
| Type Prod | Power |
| Schedule B | 8504500000 |
| HTSN | 8504508000 |
SKU: 27472C
