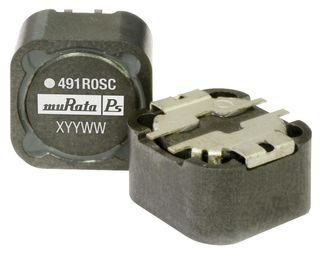

Ind Power Shielded Bobbin Core 4.7uH 30% 10KHz 42Q-Factor 7.7A T/R
The 4900S series is a range of bobbin-wound, surface-mount inductors designed for use in switching power supply, and power line filter circuits. The parts are suitable for any application requiring a high saturation current in a low-profile package. The devices have an integral ferrite shield to reduce EMI.
- RoHS compliant
- 1.0µH to 1mH
- Up to 11.8A IDC
- Bobbin format
- Surface mount
- Integral EMI shield
- Compact size
- Tape and reel packaging
- UL 94V-0 materials
- J-STD-020-C reflow
Характеристики
| Бренд | Murata |
|---|---|
| Рабочая температура | -40 to 85 °C |
| Lead Finish | Tin |
| Tolerance | 30 % |
| Test Frequency | 10 kHz |
| Technology | Bobbin Core |
| Max Proce | 245 |
| Описание продукта | 12.5 x 12.5 x 8 |
| Длина | 12.5 mm |
| Type Prod | Power |
| Schedule B | 8504100000 |
| HTSN | 8504508000 |
| Protectio | Shielded |
SKU: 494R7SC
