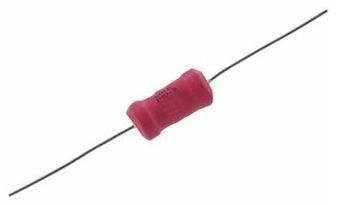

Ind High Current Filter Bobbin Core 39uH 15% 1KHz Ferrite 4A AXL Bulk
Ind High Current Filter Bobbin Core 39uH 15% 1KHz Ferrite 4A AXL Bulk
- Printed circuit mounting (axial leads)
- Protected by polyolefin tubing
- High saturation bobbin used allowing high inductance with low DC resistance
- Pre-tinned leads
- High resistivity core offers very high parallel resistance, resulting in maximum coil performance
- 20 sleeveless models available at reduced cost
- Compliant to RoHS Directive 2002/95/EC
Характеристики
| Бренд | Vishay |
|---|---|
| Lead Style | Axial Leaded |
| Длина | 22.86 mm |
| Core Material | Ferrite |
| Диаметр | 11.68 mm |
| Описание продукта | 11.68 x 22.86 |
| Technology | Bobbin Core |
| Test Frequency | 1 kHz |
| Schedule B | 8504500000 |
| HTSN | 8504508000 |
| Страна происхождения | Dominican Republic |
| Max Proce | 245 |
| Tolerance | 15 % |
| Рабочая температура | -55 to 125 °C |
| Lead Finish | Tin/Copper |
| Msl Level | 1 |
SKU: IHD3EB390L
