i.MX RT1050 Crossover Processor with Arm Cortex-M7 Core Evaluation Board

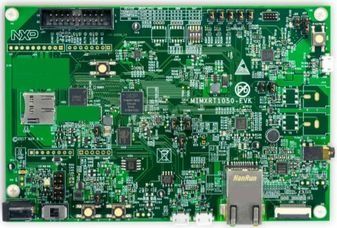

The i.MX RT1050 EVK is a 4-layer through-hole USB-powered PCB. At its heart lies the i.MX RT1050 crossover processor, featuring NXP’s advanced implementation of the Arm Cortex-M7 core. This core operates at speeds up to 600 MHz to provide high CPU performance and best real-time response.

• 512 KB on-chip RAM which can be flexibly configured as TCM
• Various memory interfaces, including SDRAM, Raw NAND Flash, NOR Flash, SD/eMMC, QuadSPI
• Rich multimedia, including LCD display, parallel camera, 2D graphics acceleration, camera interface, SPDIF and multiple I 2 S audio interfaces
• A wide range of interfaces to support both wired (Ethernet, USB, CAN, etc.) and wireless standards such as Wi-Fi, Bluetooth, BLE, ZigBee and Thread
• Abundant peripherals: 2x HS USB OTG, 2x SDIO, 2x CAN, 1x 10/100 ENET with 1588, 8x UART, 4x SPI, 4x I2 C, 4x Flex PWM, 4x Quad Timer, 4x ENC, 4x PIT, 2x GPT, 2x 12-bit ADC, 4x analog comparators
• Advanced power management module with DC-DC and LDO that reduces the complexity of an external power supply and simplifies power sequencing
