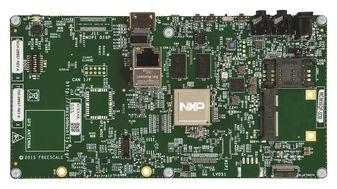

i.MX 6QuadPlus Processor Based Development Board

The i.MX 6QuadPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a quad-core ARM Cortex -A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.

• 4x ARM® Cortex®-A9 up to 1.2 GHz per core
• 1 MB L2 cache
• 32 KB instruction and data caches
• NEON SIMD media accelerator
• Embedded prefetch & resolve engine
• GPU 3D
  • Vivante GC2000+
  • 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, OpenCL™ 1.1 EP
• GPU 2D(Vector Graphics)
  • Vivante GC355
  • 300Mpxl/s, OpenVG 1.1
• GPU 2D(8-layer Composition)
  • Vivante GC320
  • 600Mpxl/s, BLIT
• Video Decode
  • HD (1080p + 720p) 30fps
• Video Encode
  • HD 1080p 30fps
• Camera Interface
• Types: 1x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs
• 512KB OCRAM
• DDR
  • Significant increase in 64-bit memory bus performance, and memory interfaces support DDR3, DDR3L and LP-DDR2 at 533 MHz
  • 2x32 LP-DDR2, 1x64 DDR3 / DDR3L
• Four USB 2.0
  • 1x HS USB 2.0 OTG + PHY
  • 1x HS USB 2.0 Host + PHY
  • 2x HS USB 2.0 Host (HSIC)
• Ethernet
  • 1 Gbps + IEEE®1588
• Expansion Ports
  • 4x eMMC 4.5 / SD 3.0
  • 5x SPI, 5x UART, 3x I²C
  • PCIe 2.0 (1 lane)
• 2x QXGA (2048x1536)
• or 2x WXGA (1280 x 720)
• PMU integration
• PF0100F9 power management unit
• High Assurance Boot
• Cryptographic cipher engines
• Random number generator
• Tamper-resistant RTC
• 21 x 21mm, 0.8 mm BGA
• Consumer (-20C to +105C), up to 1.2 GHz*
• Industrial (-40C to +105C), up to 800 MHz
• Automotive (-40C to +125C), AEC-Q100, up to 1 GHz
