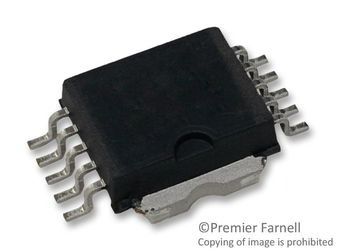

Ignition Coil Driver Power Integrated Circuit 10-Pin(10+2Tab) PowerSO T/R

The VB526SP-E is a high voltage power integrated circuit made using the STMicroelectronics VIPower M1-3 technology, with Darlington and logic level compatible vertical current flow power driving circuit.The enable pin allows to externally block the switch when the input is on. A built-in protection circuit for coil current limiting and collector voltage clamping allows the device to be used as a smart, high voltage, high current interface in advanced electronic ignition systems. If the input signal from the microcontroller happens to remain high, the device protects itself against overheating by forcing collector current to smoothly decrease (low voltage clamp feature) to avoid undesired spark.

ECOPACK® : lead free and RoHS compliant

Primary coil voltage internally set

Coil current limit internally set

Logic level compatible input

Driving current quasi proportional to collector current

Single flag on coil current

Low voltage clamp thermal shutdown
