IGBT Modules HEV Automotive Power Modules

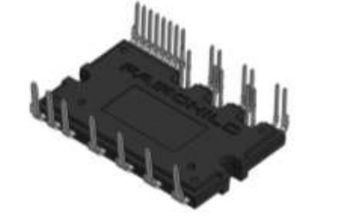

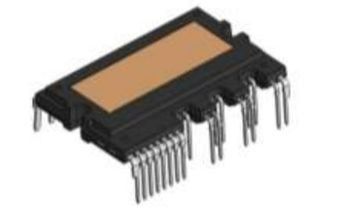

FAM65V05DF1 is an advanced Auto SPM module for providing a fully-featured high-performance auxiliary inverter output stage for hybrid and electric vehicles. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing various protection features, in a compact 12 cm2 footprint.

• 27 pin Auto SPM module
• 650 V-50 A 3-phase IGBT module with low loss IGBTs and soft recovery diodes optimized for motor control applications
• Integrated gate drivers with Internal V_S connection, under voltage lockout, over-current shutdown, temperature sensing unit and fault reporting
• Electrically isolated AIN substrate with low Rthjc
• Module serialization for full traceability
• PB-free and RoHS compliant
• UL certified No. E209204 (UL 1557)
• Automotive qualified
