iButton Probe with LED IBACC Bag

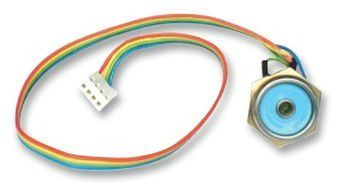

The DS9092L+ iButton Probe with LED provides the electrical contact necessary for the transfer of data to and from the DS19xx family of iButtons. The round probe shape provides a self-aligning interface that readily matches the circular rim of the iButton’s MicroCan package. The solid metal contacts resist wear and are easy to keep clean. The DS9092L+ has no moving parts, making it a rugged interface for harsh environments. The round center contact of the DS9092L+ houses the LED that is rated for maximum 20 mA DC at 2.7V typically. The probe comes with a brass M18 × 1 nut for panel mounting. Since the body of the probe also forms the ground contact, the panel should be of non-conducting material to avoid ground loops. The 30-cm cable with connector is provided for easy connection to the system microcontroller. The mating connector is a Molex Part Number 22-04-1041.

• Solid metal read/write panel-mount probe for the iButton® family
• Integrated green LED for user-feedback signaling
• Probe guides the entry of the iButton
• iButton slides over the surface to self-clean contacts
• Accessible shallow probe cavity simplifies removal of debris such as mud
• Probe suited for panels of up to 3mm thickness
• Contacts made from solid 303 stainless steel with blue nylon insulation
• Metric design, pre-wired for easy installation
