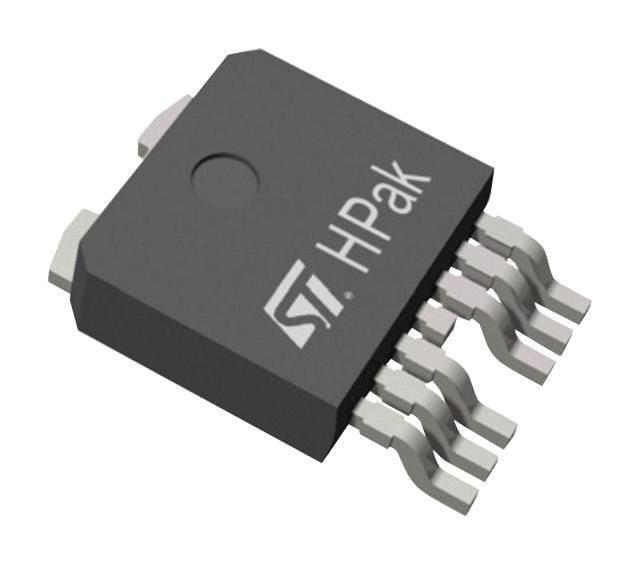

High Side Driver 6-Pin TO-252 T/R
The VN5T016AH-E is a device made using STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCCpin voltage clamp protects the device against low energy spikes. This device integrates an analog current sense which delivers a current proportional to the load current. Fault conditions such as overload, overtemperature or short to VCCare reported via the current sense pin.Output current limitation protects the device in overload condition. The device latches off in case of overload or thermal shutdown.The device is reset by a low level pass on the fault reset standby pin.A permanent low level on the inputs and fault reset standby pin disables all outputs and sets the device in standby mode.
General Very low stand-by current 3.0 V CMOS compatible input Optimized electromagnetic emission Very low electromagnetic susceptibility In compliance with the 2002/95/EC european directive Fault reset standby pin (FR_Stby) Diagnostic functions Proportional load current sense Current sense precision for wide range currents Off-state open load detection Output short to VCCdetection Overload and short to ground latch-off Thermal shutdown latch-off Very low current sense leakage Protections Undervoltage shutdown Overvoltage clamp Load current limitation Self limiting of fast thermal transients Protection against loss of ground and loss of VCC Thermal shutdown Reverse battery protected with self switch of the PowerMOS Electrostatic discharge protection
Характеристики
| Бренд | STMicroelectronics |
|---|---|
| Schedule B | 8542390000 |
| HTSN | 8542390001 |
| Страна происхождения | Китай |
| Category | High Side Driver |
| Type Prod | High Side Driver |
| Описание продукта | 6.6(Max) x 6.2(Max) x 2.4(Max) |
| Рабочая температура | -40 to 150 °C |
| Lead Finish | Tin|Silver|Bismuth |
| Msl Level | 3 |
| Supplier | TO-252 |
| Screening Level | Automotive |
| Max Proce | 260 |
