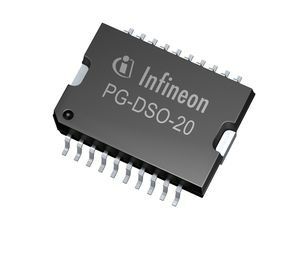

High Performance Resonant Mode Controller 20-Pin DSO T/R

Infineon ICE2HS01G is a high performance resonant mode controller designed especially for high efficiency half-bridge or full-bridge LLC resonant converter with synchronous rectification at the secondary side. With its new driving techniques, the synchronous rectification can be realized for LLC converter operated with secondary switching current in both CCM and DCM conditions. No special synchronous rectification controller IC is needed at the secondary side. The maximum switching frequency is supported up to 1MHz. Except the patented SR driving techniques, this IC provides very flexible design and integrates full protection functions as well. It"s adjustable for maximum/minimum switching frequency, soft-start time and frequency, dead time between primary switches, turn-on and turn-off delay for secondary SR MOSFETs. The integrated protections include input voltage brownout, primary three-levels over current, secondary over load protection and no-load regulation.

Resonant mode controller for Half-bridge LLC resonant converter with synchronous rectification drives

 20-pin DSO package

 30kHz to 1MHz switching frequency

 Adjustable minimum switching frequency with high accuracy

 50% duty cycle for both primary and secondary gate drives

 Adjustable dead time with high accuracy

 Driving signal for synchronous rectification which support full operation of Half-bridge LLC resonant converter

 Internal and External disable function for synchronous rectification

 Mains input under voltage protection with adjustable hysteresis

 Three levels of overcurrent protection for enhanced dynamic performance

 Open-loop/over load protection with adjustable blanking time and restart time

 Adjustable over-temperature protection with latch-off

 External latch-off enable pin
