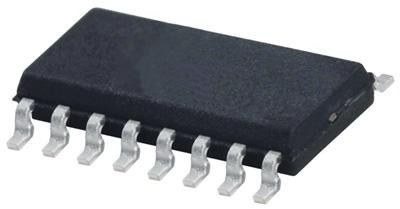

High Performance Resonant Controller 15-Pin SOIC N T/R

The NCP1397 is a high performance controller that can be utilized in half bridge resonant topologies such as series resonant, parallel resonant and LLC resonant converters. It integrates 600 V gate drivers, simplifying layout and reducing external component count. With its unique architecture, including a 500 kHz Voltage Controlled Oscillator whose control mode permits flexibility when an ORing function is required, the NCP1397 delivers everything needed to build a reliable and rugged resonant mode power supply. The NCP1397 provides a suite of protection features with configurable settings to optimize any application. These include: auto-recovery or fault latch-off, brown-out, open optocoupler, soft-start and short-circuit protection. Deadtime is also adjustable to overcome shoot through current.

• High-Frequency Operation from 50 kHz up to 500 kHz
• 600 V High-Voltage Floating Driver
• Adjustable Minimum Switching Frequency with ±3% Accuracy
• Adjustable Deadtime from 100 ns to 2 s.
• Startup Sequence Via an Externally Adjustable Soft-Start
• Brown-Out Protection for a Simpler PFC Association
• Latched Input for Severe Fault Conditions, e.g. Over Temperature or OVP
• Timer-Based Input with Auto-Recovery Operation for Delayed Event Reaction
• Latched Overcurrent Protection
• Disable Input for Immediate Event Reaction or Simple ON/OFF Control
• VCC Operation up to 20 V
• Low Startup Current of 300 A
• 1 A/0.5 A Peak Current Sink/Source Drive Capability
• Common Collector Optocoupler Connection for Easier ORing
• Optional Common Emitter Optocoupler Connection
• Internal Temperature Shutdown
• Pb-Free Devices are available
