HDMI Interface transmitter

TDA19988 is a very low power and very small size High-Definition Multimedia Interface (HDMI) v. 1.4 transmitter. It is backward compatible DVI 1.0 and can be connected to any DVI 1.0 and HDMI sink. This device is primarily intended for mobile applications like Digital Video Camera (DVC), Digital Still Camera (DSC), Portable Multimedia Player (PMP), Mobile Phone and Ultra-Mobile Personal Computer (UM PC) where size and very low power are mandatory for battery autonomy. It allows mixing 3 × 8-bit RGB or YCbCr video stream with a pixel rate up to 150 MHz together with one S/PDIF or two I2S-bus audio streams with an audio sampling rate up to 192 kHz. TDA19988 includes a HDCP 1.3 compliant cipher block. The HDCP keys are stored internally in a non-volatile OTP memory for maximum security.

• Power management:
  • External voltage supplies 1.8 V
  • Low power
  • Flexible power modes
• Package:

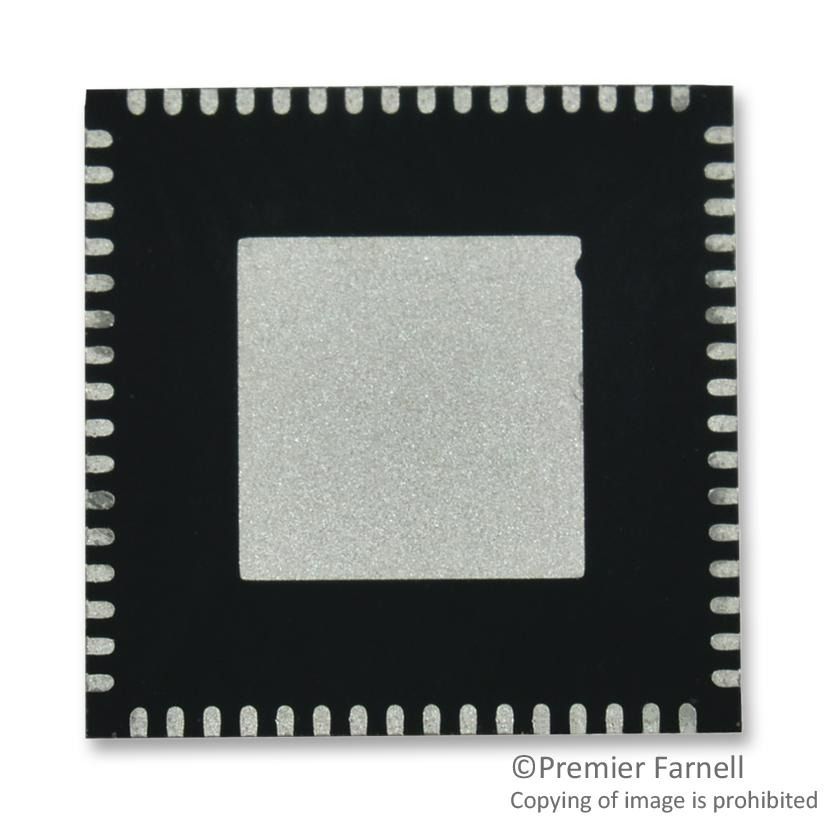

  • HVQFN64
  • Size 9 x 9 x 0.85 mm
• Miscellaneous:
  • POR (Power-On Reset)
  • Audio and video inputs LV-CMOS 1.8 V compatible and LV-CMOS 3.3 V tolerant
  • 250 MHz to 1.5 GHz TMDS transmitter operation
• Deals with multiple levels of HDCP receivers and repeaters
• Internal SHA-1 calculation
• Maximum resolution:
  • 1080p for TV
  • 1600 × 1200 at 60 Hz for PC (UXGA60)
  • 720p/1080i in ITU656
• Programmable color space converter:
  • RGB to YCbCr
  • YCbCr to RGB
