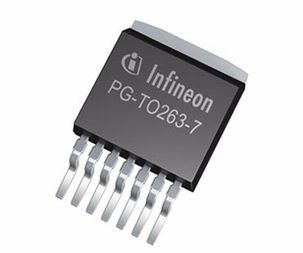

Half Bridge Driver 8-Pin(7+Tab) TO-263 Bulk

The BTN7960 is a integrated high current half bridge for motor drive applications. It is part of the NovalithIC™ family containing one p- channel highside MOSFET and one n- channel lowside MOSFET with an integrated driver IC in one package. Due to the p- channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against over- temperature, overvoltage, undervoltage, overcurrent and short circuit. The BTN7960 provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption.

Path resistance of max. 30.5 mO @ 150 °C (typ. 16 mO @ 25 °C) High Side: max. 12.8 mO @ 150 °C (typ. 7 mO @ 25 °C) Low Side: max. 17.7 mO @ 150 °C (typ. 9 mO @ 25 °C) (for BTN7960B (SMD))

Low quiescent current of typ. 7 µA @ 25 °C

PWM capability of up to 25 kHz combined with active freewheeling

Switched mode current limitation for reduced power dissipation in overcurrent

Current limitation level of 33 A min. / 47 A typ. (low side)

Status flag diagnosis with current sense capability

Overtemperature shut down with latch behaviour

Overvoltage lock out

Undervoltage shut down

Driver circuit with logic level inputs

Adjustable slew rates for optimized EMI

Green Product (RoHS compliant)

AEC Qualified
