GFCI CIRCUIT BREAKERS

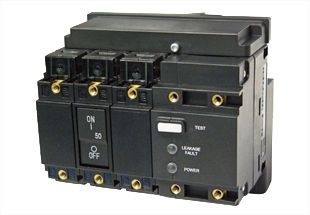

The PC-Series, AC Residual Current Circuit Breaker with Overcurrent Protection (RCBO), combines the ground fault protection of a GFCI with the familiar overcurrent tripping characteristics of a normal circuit breaker. The PC-Series utilizes the hydraulic-magnetic principle which provides precise operation and performance even when exposed to extremely hot and/or cold application environments.

• Overload, short circuit and ground fault protection in a single package
• Handle style actuators and rocker style “acuguard”
• Wiping Contacts - Mechanical linkage with twostep actuation - cleans contacts, provides high, positive contact pressure & longer contact life
• A trip-free mechanism, a safety feature which makes it impossible to manually hold the contacts closed during overload or fault conditions.
• A common trip linkage between poles ensures that an overload in one pole will trip all adjacent poles.
• Front panel mounting
• Integral push-to-test button
• Two integrated LED indicators show if a breaker is closed w/ Line Voltage present, or has opened due to leakage current, opened due to overcurrent, or closed w/ no Line Voltage present.
• Optional Hot/Neutral reversal detection and protection
