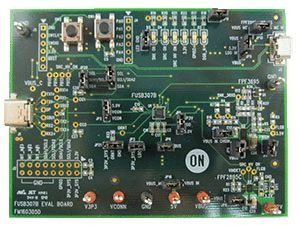

FUSB307B USB Type-C Port Controller with USB-PD Evaluation Board

The FUSB307B targets system designers looking to implement up to four USB Type-C port controllers (TCPC) with USB-PD capabilities.This solution provides integrated Type-C Rev 1.3 detection circuitry enabling manual attach/detach detection. Time critical Power Delivery functionality is handled autonomously, offloading the Processor or Type-C Port Manager (TCPM).The FUSB307B complies with the USB-PD Interface Specification.

• USB-PD Interface Spec Rev 1.0 Ver. 1.2 Compatible
• USB Type-C Rev 1.3 Compatible
• Extended Data Messages (Chunked)
• Fast Role Swap
• Sink Transmit
• USB-PD Rev 3.0 Ver. 1.1 Compatible
• Dual-Role Functionality
  • Manual Type-C Detection
  • Automatic DRP Toggling
• USB-PD Interface Specification Support
  • Automatic GoodCRC Packet Response
  • Automatic Retries of Sending Packet
  • All SOP Types Supported
• VBUS Source and Sink Control
• Integrated 3 W Capable VCONN to CCx Switch
• 10-bit VBUS ADC
• Programmable GPIOs
• 4 Selectable I2C Addresses
• Dead Battery Operation
  • Powered from VBUS
  • LDO Output provides power to TCPM
• Packaging
  • 16-pin WQFN (3.0 × 3.0 mm)
