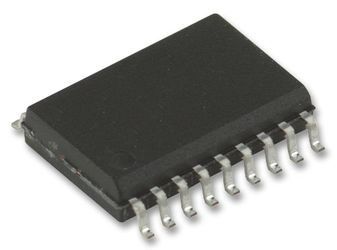

Full Bridge Motor Driver 22-Pin(20+2Tab) HSOP T/R
The TB6549 series are a full-bridge driver IC for DC motors that uses an LDMOS structure for output transistors. High-efficiency drive is possible through the use of a MOS process with low ON-resistance and a PWM drive system. Four modes, CW, CCW, short brake, and stop, can be selected using IN1 and IN2.
- Power supply voltage: 30 V (max)
- Output current: 3.5 A (max) (FG,PG type)/4.5 A (max) (HQ type)
- Low ON-resistance: 1.0 ? (up + low/typ.)
- PWM control capability
- Standby system
- Function modes: CW/CCW/short brake/stop
- Built-in overcurrent protection
- Built-in thermal shutdown circuit
- Package: HSOP20/DIP16/HZIP25
Характеристики
| Бренд | Toshiba |
|---|---|
| Type Prod | Full Bridge Motor Driver |
| Schedule B | 8542390000 |
| Страна происхождения | Japan |
| Рабочая температура | -20 to 85 °C |
| Описание продукта | 16.5 x 8.8 x 2.3 mm |
| Maximum O | 10 mA |
| Supplier | HSOP |
| Max Proce | 260 |
| HTSN | 8542390001 |
SKU: TB6549FG(O,EL)
