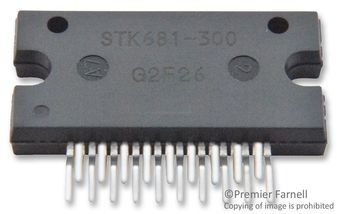

Forward/Reverse Motor Driver 5V/NV/AV 19-Pin ZIP
STK681-300 is a forward/reverse motor driver thick film hybrid IC. It is designed for current control of DC brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 2.9A and the peak brake output current is 5A. It have current sensing resistor built-in, and we can space-saving design easily. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.
- Built-in current sensing resistor
- Built-in overheat protection
- Built-in over-current protection
Характеристики
| Бренд | ON Semiconductor |
|---|---|
| Type Prod | Forward/Reverse Motor Driver |
| Schedule B | 8542390000 |
| Страна происхождения | Viet Nam |
| Рабочая температура | |0|0|150 |
| Описание продукта | 29.2 x 4.5 x 14.4 mm |
| Operating | 5|N/A V |
| Lead Finish | Matte Tin |
| Maximum O | 4 mA |
| Supplier | ZIP |
| HTSN | 8542320002 |
SKU: STK681-300
